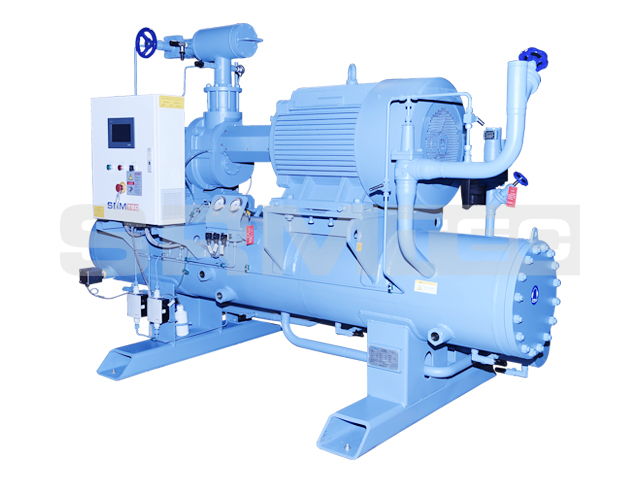

Open-type Single-stage Screw Compressor Unit (horizontal type)



SRM  Open- type Single- stage Screw Compressor Units include 5 series  totaling 16 models. These series are developedon the standards of high  reliability and high energy efficiency. They could be packaged with  variable frequency motor,applicable for R717, R404A and R507A. The unit  is controlled intelligently through computer. Easy operation and high-  degreeautomation. The standard scope of supply: compressor, open- type  motor, control center, oil separator, oil cooler, (Economizer),high  capacity filter, pre- lubricating oil pump, automation components,  valves, etc.

Merits of open-type single-stage inverter screw compressor unit
● SRM high- efficiency screw compressor: higher COPthan the same type of compressor units.
Open  asynchronous motor with high efficiency and lownoise; the permanent  magnet synchronous variablefrequency motor is also available for  selection.
Differential- pressure oil supply system with a small oilpump as pre- lubrication: energy- saving and reliable.
Economizer installed: make the high pressure liquidfrom the condenser subcooled, thus improve COP ofthe system.
Fully  automatic one- key start- up; real- time analysisand monitoring of the  operation status; saving andkeeping of the historical data, remotely  control.
Automatic capacity control make the unit run with highefficiency under various working conditions.
The preventive safety and protection system:unmanned but safe and reliable.
All the components are from well-know nmanufacturers: high reliability and guaranteed quality.
Each unit is tested and checked for its fullperformance to ensure the quality.

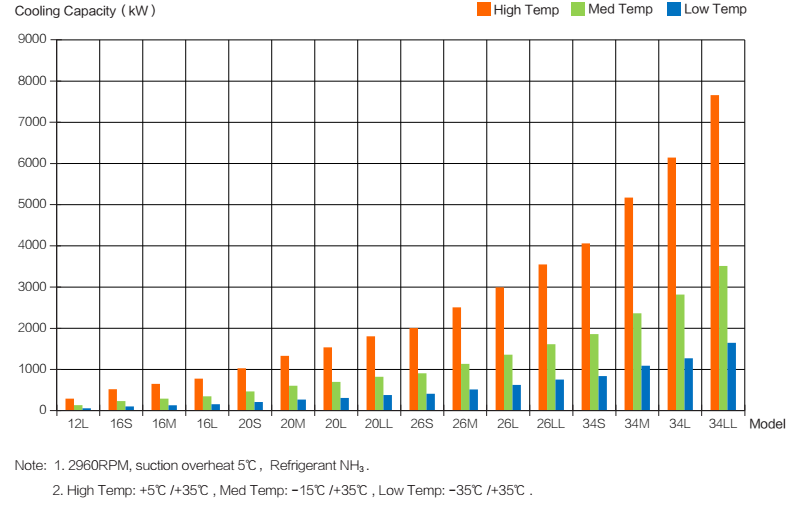

Cooling Capacity of the Unit

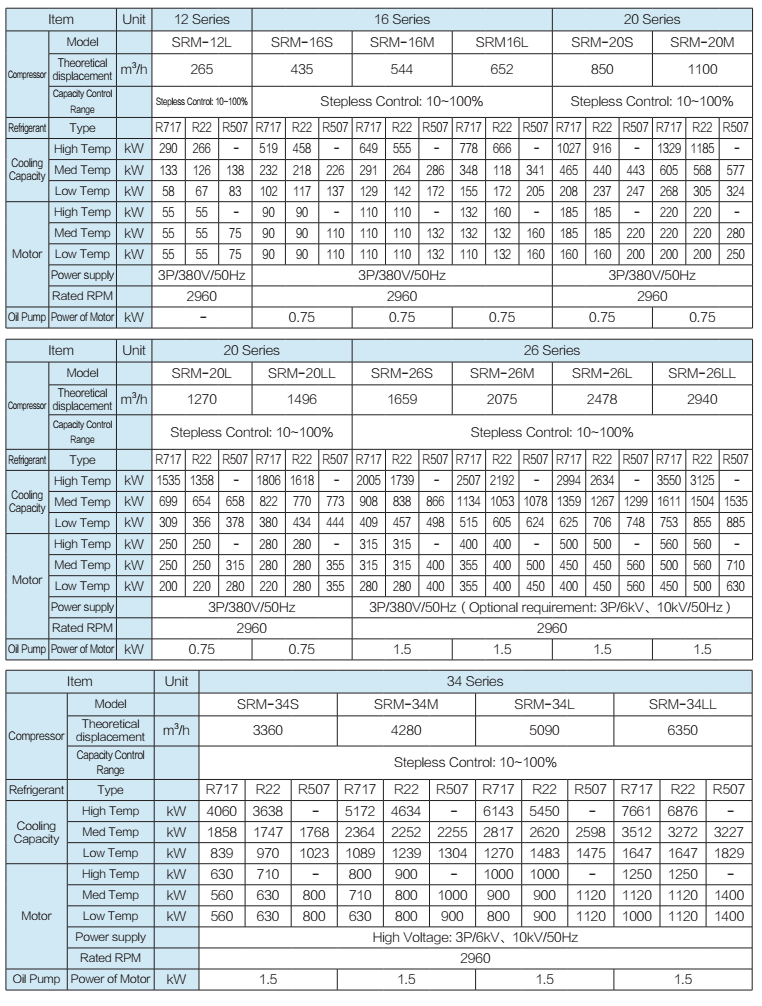

Technical Parameter List of Series Open-Type One-stage Screw Compressor Unit (Constant Speed)
